WEEDEN ELECTRIC MOTORS

Weeden Manufacturing made several electric motors, they were primarily used as generators driven by one of their steam engines.

Weeden No. 1 Motor


Thanks Steamrgene

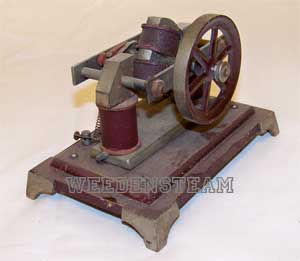

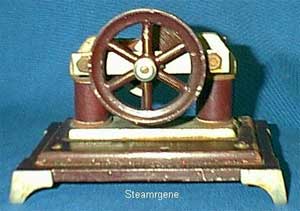

The Weeden No. 1 motor and the No. 101 motor are very similar, both have a 2 1/2" dia. flywheel and a 6" X 4" base.

The motor model can be identified by the armature brackets, the No. 1 used straight bars with spacers, the No. 101 used bent bars with no spacer.

Manufactured from 1910 to 1912, then replaced by the No. 101.


Weeden No. 101 Motor


Thanks Steamrgene

Flywheel is 2 1/2" in diameter, base is 6" X 4", motor is about 4" high.

The weeden No. 101 is a similar motor to the above No. 1 that it replaced in 1912, production continued into 1918.

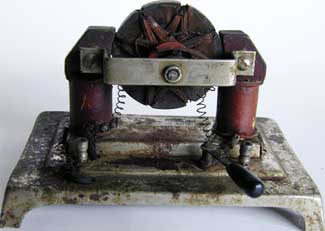

This is a unique motor, similar to the No. 101 but has star shaped armature windings, not sure if it was manufactured like this or if it has been altered.


Weeden No. 102 Motor


Thanks Tom

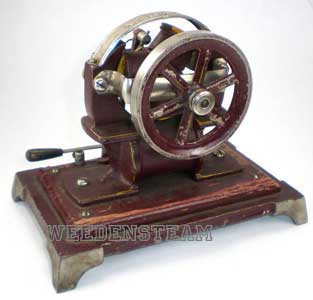

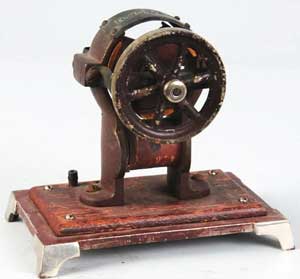

The weeden No. 102 was introduced in 1913, production continued into 1918. 6" X 4" base with 2 1/2" flywheel. Early models were mounted on a wooden sub-base attached to a cast iron base, later models had a nickel plated steel base.


Weeden No. 103 Motor


Thanks Jeff H.

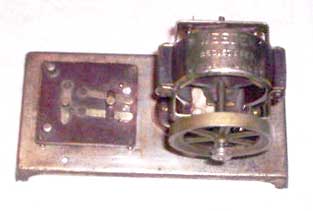

The No. 103 was also offered on a larger base with a control panel.

The weeden No. 103 was introduced in 1913, production continued into 1918. 6" X 4" base with 2 1/2" flywheel. Early models were mounted on a wooden sub-base attached to a cast iron base, later models had a nickel plated steel base. Very similar to No. 102, but frame is narrower and coil is higher.


Weeden No. 104 Motor


Thanks Steamrgene

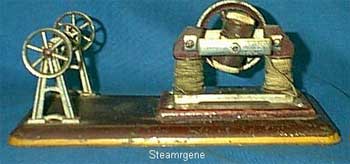

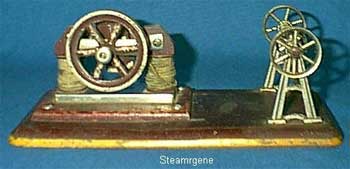

The Weeden No. 104 motor is a No. 101 motor and countershaft mounted on a 10 1/4" X 5" metal base. It was introduced in 1912 and produced until 1918. Early models had cast lead countershaft supports, later models pressed steel.


Weeden No. 105 Motor

weeden105 force pump
Thanks G.R. Clements

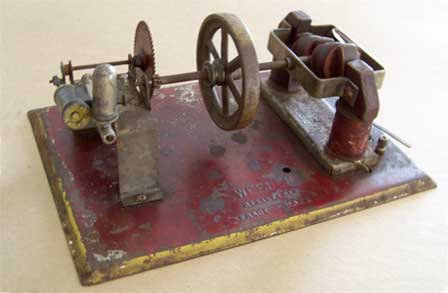

The Weeden No. 105 motor is a No. 101 motor and force pump combined, mounted on a 8 1/2" X 6" metal base. It was introduced in 1911 and continued until 1918.


Weeden No. 106 Motor


Thanks Dick




Thanks Dick

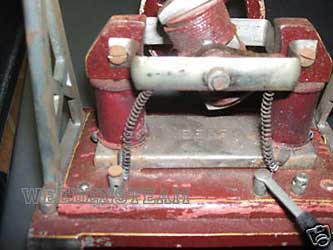

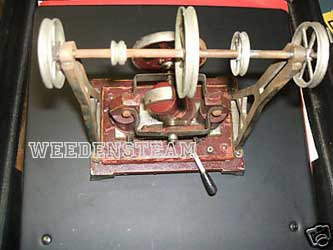

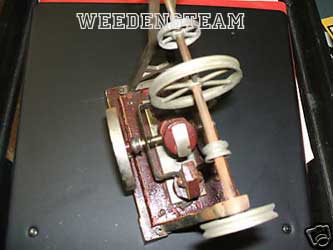

The Weeden No.106 motor was introduced in 1912 and produced until 1918, it is actually a No. 101 motor with an overhead shaft with five pulleys. Base is 6" X 4" and it stands 8" high.


Weeden No. 107 Motor


Thanks Steamrgene

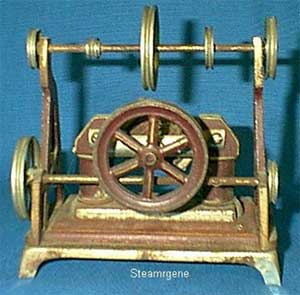

The Weeden No.107 motor was introduced in 1912 and produced until 1918, it is actually a No. 101 motor with two lines of shafting. Base is 6" X 4", it stands 6 1/4" high.


Weeden No. 109 Motor

Thanks Morphy Auctions

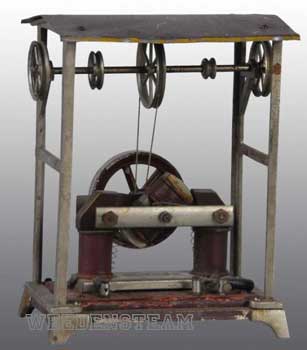

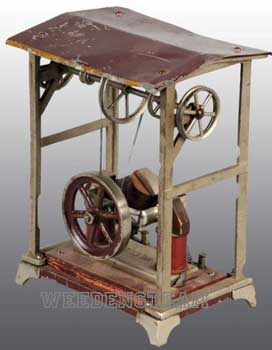

The Weeden No.109 motor was introduced in 1912 and produced until 1918, it is a reversible motor. Base is 4" X 6", it stands 8" high. It features a roof and a five pulley shaft to drive accessories.


Weeden No. 110 Display Board

No. 110 Display Board
Photo from Weeden Catalogue

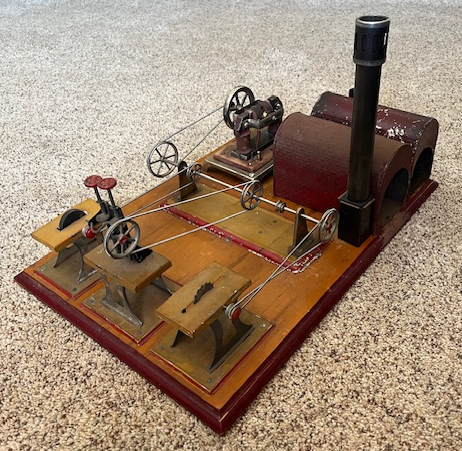

The Weeden Display Board was introduced in 1912 and production continued until 1918, it is a large display, base is 18" X 12". Set includes a Circular Saw, Emery Wheel, Stamp Mill and Counter Shaft driven by a No. 101 electric motor. The two power houses hold batteries to supply power.


Weeden No. 111 Reversible Motor


Thanks Ronald B.

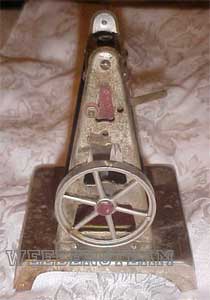

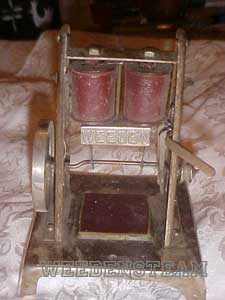

The Weeden No.111 motor was introduced in 1912 and produced until 1918, it is a reversible motor. Base is 4" X 4", it stands 5 3/4" high.


Weeden No. 112 Motor

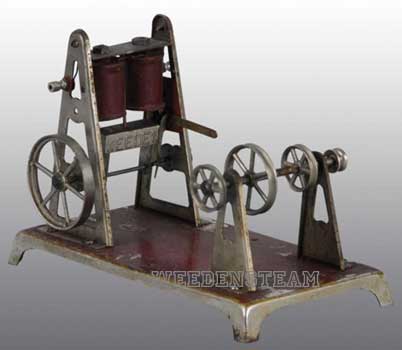

The Weeden No.112 motor was introduced in 1912 and produced until 1918, it is a reversible motor. Base is 4" X 8", it stands 5 1/4" high.


Weeden No. 113 - 114 Motor


Thanks John T.

The Weeden No.113 motor was introduced in 1912 and produced until 1918, it is a reversible motor. Base is 4" X 6", it stands 3 1/4" high with a 2 1/2" diameter balance wheel.

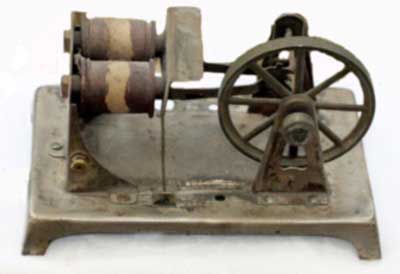

The Weeden No.114 motor was introduced in 1912 and produced until 1918, it is a reversible motor. Base is 4" X 8", it stands 4" high with a 3" diameter balance wheel.



Weeden No. 116 Display Board

Weeden No.116
Thanks Russ S.

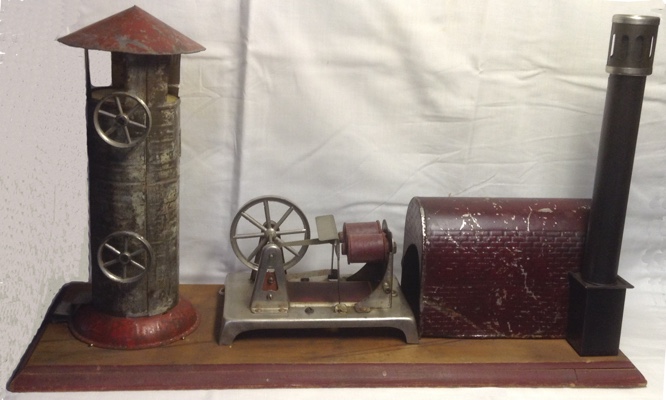

The Weeden No.116 Display Board is made up of a Power House that contains the battery, a No. 115 Windmill and a No.113 Motor. The unit stands 10 1/2" high, the red base is 18" long and 6 1/2" wide. Introduced in 1913, production continued until 1918.


Weeden No. 117 Motor


Thanks Steamrgene

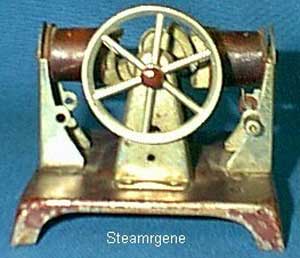

The Weeden No. 117 motor was introduced in about 1916 and produced until 1918. Base is 4" X 6" and it stands 3 1/2" high.
